Introducing the R60 NIR

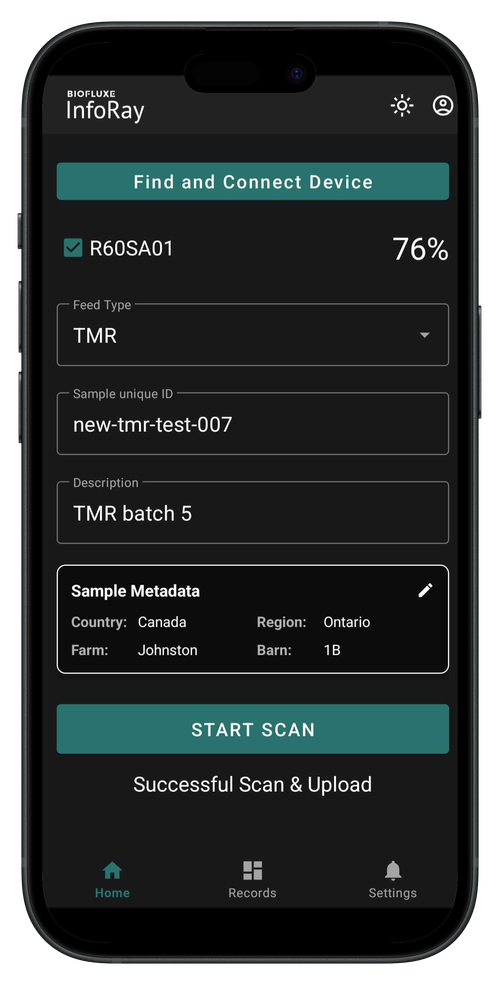

Mobile phone screen displaying the Bioflux InfoRay app with options to find and connect a device, scan, and upload sample metadata about a TMR batch in Ontario, Canada.

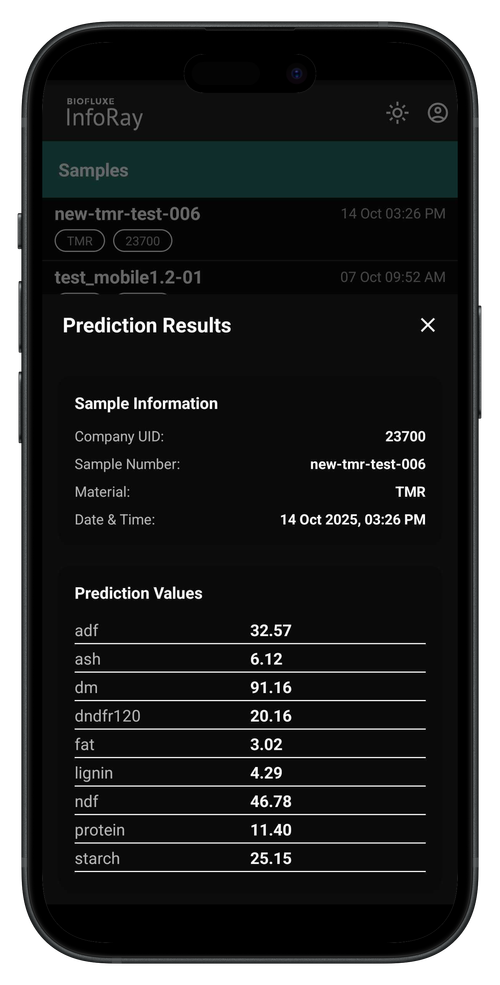

Mobile phone screen displaying bioinformatics software with 'Prediction Results' including sample info and various numerical prediction values.

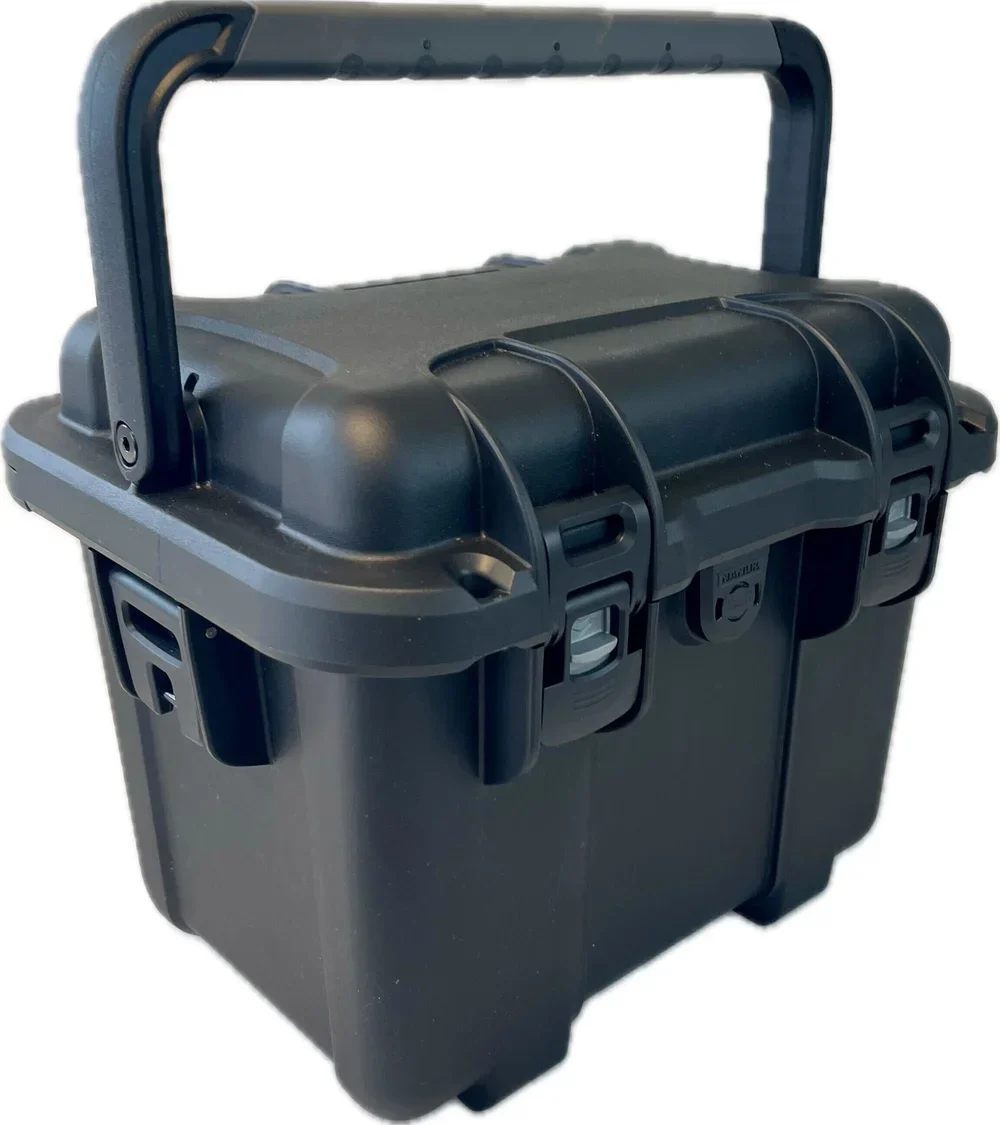

A black hard-shell storage case with a handle on top and latches on the front for securing the lid.

Make informed decisions in real-time to optimize rations and drive results.

Calibrations : TMR | CS | Silage | Haylage | Hay | Manure

Dataset : > 402K spanning 22 yrs .

Region : North America , South America, Afro-Eurasia, Europe, Australasia, East Asia

The R60 Scanner, a portable Near InfraRed (NIR) spectrometer, offers effortless and precise measurement of diverse parameters in both uniform and non-uniform materials.

By utilizing the R60 Scanner along with its Biofluxe software (app and datalake) and expert-crafted prediction models, individuals can perform rapid, high-quality analysis comparable to laboratory results from anywhere.

  • Large Scanning Window: The R60 provides large sample coverage, allowing for analysis of diverse materials.

  • Wide Spectral Range: Its unique extended NIR spectral range enables analysis of a broad range of materials and parameters.

  • Ergonomic Design: The R60 is designed for comfort and ease of use, making scanning effortless.

  • Robust Construction: The R60’s rugged design (Carbon Fiber) allows for near-lab analysis even in challenging environments.

  • Wireless Operation: The R60 operates wirelessly without the need for an external power source but can be run while charging if desired.

  • Bluetooth Connectivity: The R60 connects to a mobile device or laptop seamlessly via Bluetooth.

  • Integration into Biofluxe: The R60 comes integrated into the Biofluxe datalake making analysis, model development and documentation simple.

  • Color : The R60 comes in either Black or Orange

SPECS

“ The R60 was purpose built to do Fermentrics as an NIR … we took the best attributes of bench top NIR units and made it rugged and portable. ”

— Dr. Johnston

How does the scanner work?

A black and white illustration of a human skull with a circular symbol behind it.
A black and white illustration of a human skull with a circular symbol behind it.

Technical Performance

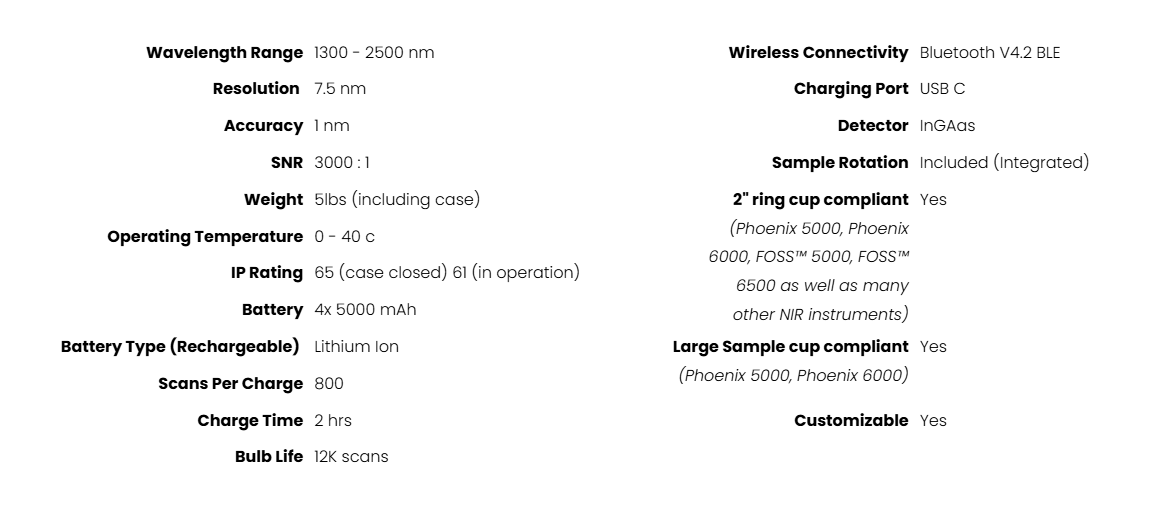

Table listing specifications of a scientific instrument, including wavelength range, resolution, accuracy, wireless connectivity, charging port, detector type, sample rotation, compatibility, temperature, IP rating, battery details, Bluetooth version, sample cup compatibility, and other features.
Table listing specifications of a scientific instrument, including wavelength range, resolution, accuracy, wireless connectivity, charging port, detector type, sample rotation, compatibility, temperature, IP rating, battery details, Bluetooth version, sample cup compatibility, and other features.

Features

  • Stay powered up and ready to go with our long-lasting battery feature. Equipped with 4x 5000mAH batteries, our device ensures continuous operation for up to 800 scans on a single charge. Keep your analysis sessions running smoothly with our rechargeable and easily replaceable power pack, providing convenience and reliability when you need it most.

  • R60's intuitive design and powerful cloud platform make testing effortless. Our multi-sample, multi-parameter analysis streamlines your workflow, making it fast and efficient. Simplify complex processes, measure samples instantly, and ensure material conformity with ease.

  • Elevate your testing capabilities with Precision you can trust. The R60 portable spectrometer offers extended spectral range (1300–2500 nm) providing unmatched sensitivity and precision for confident decision-making.
